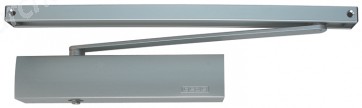

TS 5000 L overhead rack and pinion guide rail door closer

• Specification:
- Surface mounted eccentric rack and pinion door closer with guide rail arm for doors up to 1400 mm, with adjustable closing force, optical strength indicator, backcheck, hydraulic latch action and eccentric rack and pinion for easier opening. All adjustments on the front of the mechanism.
• Features:
- Eccentric rack and pinion for easier opening
- Non-projecting guide rail arm
- Closing force adjustable from the front (size range 2-6 EN)
- Optical closing force indicator
- Adjustable backcheck
- Valve adjustable latching speed
- All adjustments on front of closer
• Options (shown in Related Products)
- Hold open insert (not for fire doors)
- T-stop guide rail
- Mounting plate
- Soffit bracket, frame mounting
• Certification
- Tested and approved to BS EN 1154:1997
- Tested to conform with CE requiremenst
- Certifire approved; certificate no. CF145 120 mins timber
• Material
- Aluminium body and guide rail. Mild steel arm
- Electro plated mild steel cover (not suitable for external use)*
• A door stop should always be used for non backchecked doors, and where practical for backchecked doors, and at least 66% of the door width away from the hinge. Alternative would be to fit a T-stop guide rail (shown in Related Products)
• For application figures, please see PDF Page
