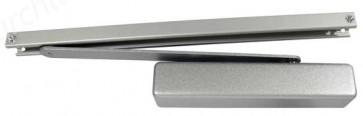

Ts 3000b Guide Rail Closer Silver

• Specification:
- Surface mounted cam action door closer with guide rail arm for doors up to 1100 mm with adjustable closing force, hydraulic latching action and cam action for easier opening
- Valve adjustable latching and closing on the front of closer
• Features:
- Conforms to BS 8300 DOC M (opening force 0-30 = 24.87 Nm)
- Cam-action
- Non projecting guide rail arm
- Closing force adjustable (size EN 2-4)
- Valve adjusting closing force
- Valve adjusting closing speed
- Adjustable hydraulic backcheck
- Adjustable hydraulic latching action
• Options (shown in Related Products)
- Hold open insert (not for fire doors)
- T-stop guide rail
• Certification
- Tested and approved to BS EN 1154A: 1997
- Tested to conform with CE requirements
- Certifire approved; certificate no. CF145 120 mins timber
• Material:
- Aluminium body and guide rail. Mild steel arm
• Available in SSS and PSS, RAL colours to special order, subject to quantity
• A door stop should always be used for non back checked doors, and where practical for back checked doors, and at least 66% of the door width away from the hinge. Alternative would be to fit a T-stop guide rail (see Related Products)
• For application figures please see PDF Page
