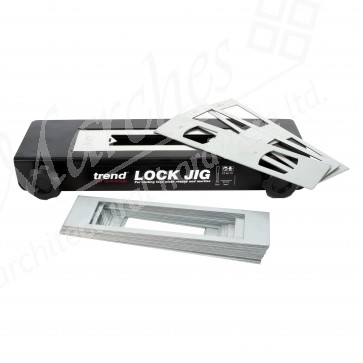

Trend - Professional Lock Jig
£94.99 (£113.99 inc. VAT) Special Price
Regular Price: £108.33 (£130.00 inc. VAT)
Availability: Out of stock
Quick Overview
Specifications -
Door thickness min. 34 mm
Door thickness max. 58 mm
Faceplate Templates
25.4 x 60.0mm (Tubular Latch) - 22(A)
24.0 x 57.5mm (Tubular Latch) - 22(B)
26.0 x 56.5mm (Tubular Latch) - 23(A)
26.0 x 57.5mm (Tubular Latch) - 23(B)
22.2 x 128.5mm - 20
22.2 x 155.0mm - 1
22.5 x 152.5mm - 2
25.4 x 121.0mm - 3
26.0 x 134.0mm - 5
25.4 x 153.0mm - 7
25.4 x 165.5mm - 9
25.4 x 177.0mm - 10
26.0 x 139.0mm - 21
26.0 x 162.0mm - 12
Mortise Templates
19 x 22mm (Tubular Latch) - J(A)
22 x 24mm (Tubular Latch) - J(B)
16 x 72mm - A
16 x 102mm - F
16 x 109mm - B
19 x 78mm - C
19 x 90mm - E
19 x 109mm - D
19 x 115mm - H
Door thickness min. 34 mm
Door thickness max. 58 mm
Faceplate Templates
25.4 x 60.0mm (Tubular Latch) - 22(A)
24.0 x 57.5mm (Tubular Latch) - 22(B)
26.0 x 56.5mm (Tubular Latch) - 23(A)
26.0 x 57.5mm (Tubular Latch) - 23(B)
22.2 x 128.5mm - 20
22.2 x 155.0mm - 1
22.5 x 152.5mm - 2
25.4 x 121.0mm - 3
26.0 x 134.0mm - 5
25.4 x 153.0mm - 7
25.4 x 165.5mm - 9
25.4 x 177.0mm - 10
26.0 x 139.0mm - 21
26.0 x 162.0mm - 12
Mortise Templates
19 x 22mm (Tubular Latch) - J(A)
22 x 24mm (Tubular Latch) - J(B)
16 x 72mm - A
16 x 102mm - F
16 x 109mm - B
19 x 78mm - C
19 x 90mm - E
19 x 109mm - D
19 x 115mm - H
Description
A site-tough routing jig with interchangeable templates to cut lock & face-plate recesses in timber doors. Steel construction and tool-free setup deliver speed and accuracy. Ideal for all popular mortice sash locks, dead locks and tubular latches from leading ironmongery brands.
- Steel Construction for maximum strength, durability and accuracy.
- Full-Length Adjustable Fence to accommodate all doors between 34mm and 58mm thick.
- Quick-Release Clamps with non-marring pads ensure the jig is held securely.
- 20 Interchangeable Templates to suit all common lock case and face plate sizes.
- Easy Reference Chart ensures that correct templates are found quickly.
- Requires: ½”/12mm Plunge Router (80mm plunge depth), ½”/12mm Router Cutter (12mm cut diameter x 63mm cut length), and 30mm Guide Bush.
