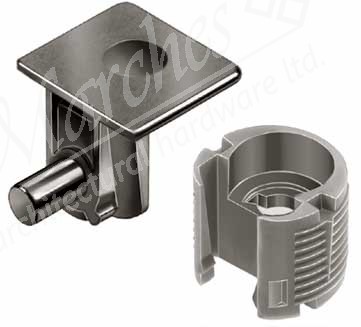

TAB shelf connector, plug-fit
Quick Overview
• Plug-fit into Ø 5 mm holes
• Zinc alloy support
• Natural coloured plastic boss insert
• Boss inserts lie flush, allowing shelves to be stacked
• For wood thicknesses from 16 to 26 mm
• Dimensions vary according to wood thickness (please see illustration):
- For wood thickness from 16 mm: Dimension A = 8 mm, Drilling depth X = 13 mm
- For wood thickness from 19 mm: Dimension A = 9.5 mm, Drilling depth X = 15 mm
- For wood thickness from 23 mm: Dimension A = 11.5 mm, Drilling depth X = 17 mm
- For wood thickness from 26 mm: Dimension A = 13 mm, Drilling depth X = 18.5 mm
• This fitting should be used in situations where shelves are to be rapidly removed, and if required installed at a different level
• Excellent rigidity at joints
• Pulls shelf onto side panel
• Boss inserts lie flush, allowing shelves to be stacked
• Zinc alloy support
• Natural coloured plastic boss insert
• Boss inserts lie flush, allowing shelves to be stacked
• For wood thicknesses from 16 to 26 mm
• Dimensions vary according to wood thickness (please see illustration):
- For wood thickness from 16 mm: Dimension A = 8 mm, Drilling depth X = 13 mm
- For wood thickness from 19 mm: Dimension A = 9.5 mm, Drilling depth X = 15 mm
- For wood thickness from 23 mm: Dimension A = 11.5 mm, Drilling depth X = 17 mm
- For wood thickness from 26 mm: Dimension A = 13 mm, Drilling depth X = 18.5 mm
• This fitting should be used in situations where shelves are to be rapidly removed, and if required installed at a different level
• Excellent rigidity at joints
• Pulls shelf onto side panel
• Boss inserts lie flush, allowing shelves to be stacked
