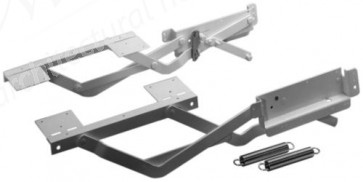

Swing Mechanism 8kg White
£183.40
(£220.08 inc. VAT)
Availability: In Stock
Quick Overview
Foldaway fittings
Description
• For holding heavier kitchen appliances
• In fully extended position the shelf lies flush with the worktop
• Lift up to release the locking mechanism when returning to stored position
• Load bearing capacity 8 kg
• For cabinet widths 350 - 600 mm. Installation width is optional between 300 mm and 568 mm as the two arms are completely separate
• Swivel depth 445 mm
• Maximum shelf width is internal cabinet width less 90 mm, shelf depth = 300 mm
• The cranked mounting brackets prevent the door hinges fouling the shelf when raised
• When mounted directly beneath the worktop the smallest remaining useable height within the cabinet is 340 mm
• Galvanised steel 150N tension springs
• White lacquered steel
• In fully extended position the shelf lies flush with the worktop
• Lift up to release the locking mechanism when returning to stored position
• Load bearing capacity 8 kg
• For cabinet widths 350 - 600 mm. Installation width is optional between 300 mm and 568 mm as the two arms are completely separate
• Swivel depth 445 mm
• Maximum shelf width is internal cabinet width less 90 mm, shelf depth = 300 mm
• The cranked mounting brackets prevent the door hinges fouling the shelf when raised
• When mounted directly beneath the worktop the smallest remaining useable height within the cabinet is 340 mm
• Galvanised steel 150N tension springs
• White lacquered steel
Page in catalogue: download page (PDF)
