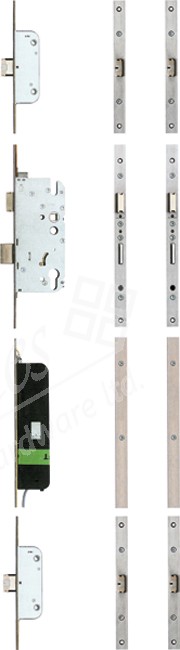

Multiple locking device

• Features:
- Suitable for timber, PVCu and aluminium doors
- Suits either hand of door
- To be used in conjunction with Dialock electronic or equal, control systems
- To suit profile cylinders
- Automatic latchbolts, lock automatically on closing the door
• Technical data:
- Backsets 35 mm (16 mm wide forend), 55 mm and 65 mm (20 mm wide forend)
- 10 mm square follower
- Nominal voltage AC/DC - 12V 50Hz
- Max. current - 1A
- IP 40 rated
- Extension speed - 16/20 mm/s
- Max. carrying capacity - 70N
• Opening and locking functions:
- Automatic locking - latch bolts are automatically prelocked when door closes
- Automatic release - from inside, by a sensor. Latch and automatic latch bolts are retracted at the same time. From outside, through the electronic control system. i.e. Dialock
- Mechanical activation (always possible) - from inside, by activating the lever handle. From outside, by key
• Fixing:
- Fixing screws are not supplied
• Components:
- 1x Multiple locking device
- 1x Connecting cable, approx 6 m
- 1x Plug with bare ends
• Galvanised steel lock case
- Stainless steel forend
- Nickel-plated zinc diecast latch
- Nickel-plated zinc diecast automatic latch bolt
- Nickel-plated steel deadbolt
- Zinc diecast follower
