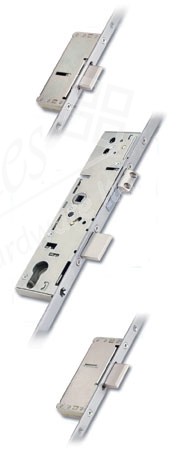

Mortice cylinder 3 point lock, 92 mm hole centres, 35/45 mm backset

• Operation: Latchbolt operated by lever handles. Deadbolts operated by lifting lever and the deadlocking by cylinder
• Cases: Steel, BZP CR3 passivate, 14.5 mm thick
• Front plate: Square, 1 piece. Steel, BZP CR3 passivate 2250 mm x 16/20 mm wide
• Keeps: Not included, must be ordered separately
• Latchbolt: Brass, satin chrome plated. Reversible
• Deadbolt: Brass, satin chrome plated. 22 mm throw
• Linear bolts: Forged brass, satin chrome plated. 22 mm overall throw
• Follower: 8 mm brass. For use with standard 92 mm unsprung lever handles
• Accepts most europrofile cylinders
• Not suitable for rebated doors
• Designed to meet the requirements of PAS 23 and PAS 24
• 10 year guarantee
• 35 or 45 mm backset
• Fixing screws are not included
• Optional shoot bolt engagement for additional security available, shown in Related Products
• Order cylinders separately; shown in Don't Forget to Order
• Order keeps separately; shown in Don't Forget to Order
• Please see PDF Page for full dimensions
