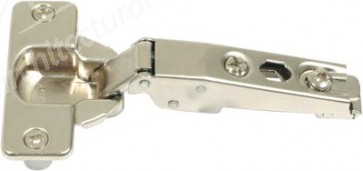

Grass standard 110° hinge, ø 35 mm cup, dowel fixing, click on arms, sprung
Quick Overview
• Opening angle 110°
• 0 mm or 8 mm crank
• Sprung
• Ø 35 mm cup
• Dowel fixing cup
• Click on arms
• Cup: Nickel-plated pressed steel
• Arm: Nickel-plated pressed steel
• Mounting plates are not included, please see Don't Forget to Order
• Hinge arm cover plates are shown in Related Products
• Soft close compatible
• Important note: The offset of the door is reduced by 2.5 mm when door is opened 90° only
• For illustrations, dimensions and instructions on how to choose the relevant mounting plates, please see PDF Page
• 0 mm or 8 mm crank
• Sprung
• Ø 35 mm cup
• Dowel fixing cup
• Click on arms
• Cup: Nickel-plated pressed steel
• Arm: Nickel-plated pressed steel
• Mounting plates are not included, please see Don't Forget to Order
• Hinge arm cover plates are shown in Related Products
• Soft close compatible
• Important note: The offset of the door is reduced by 2.5 mm when door is opened 90° only
• For illustrations, dimensions and instructions on how to choose the relevant mounting plates, please see PDF Page
