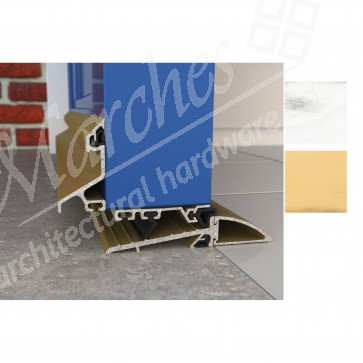

Exitex OUM/TD Thicker Door Sill (914mm) - Various Finishes

Product Code: GR323
Quick Overview
For outward opening doors. Under door clearance 19mm. Suitable for exposed locations
Separate Weather deflector supplied with protective weather deflecting Endcaps - no harmful raw edges.
Designed for doors over 44mm thick. Threshold section as standard OUM .
Description
Detach ramp from aluminium sill section. Check width between outside faces of the doorframe rebate and cut aluminium section to this size. (See illustration) Check width between inside faces of doorframe rebate and cut aluminium ramp to this size. The sill requires an under door clearance of 19mm. If necessary, remove door and trim to allow for this. Position the sill between the doorframe and mark fixing points through countersunk holes. Remove sill, drill fixing holes and insert plugs. Apply sealing compound to underside of sill and screw into place. Clip on aluminium ramp. Underdoor Seal Carrier Remove rubber seals from aluminium carrier. Cut the underdoor seal carrier to the actual width of the door and apply a bead of Exitex Elast-O-Seal to the V groove and across each end. Fit the seal carrier with the upstand fitted tight to the bottom inside edge of the door. Screw into position. Cut the two seals 3mm longer than the aluminium and reinsert into grooves. Weather Deflector With the door closed measure across the outside face of the door less 6mm for the two endcaps. Cut deflector to this dimension. Install the endcaps into the aluminium section. Screw deflector into position.

Product Variations:

Exitex Outward Threshold & Deflector Aluminium 914mm Exitex Outward Threshold & Deflector Aluminium 914mm Aluminium Product Code: 19202/MILL
£42.20 (£50.64 inc. VAT)

In Stock

Buy As Trade
Exitex - Outward Threshold & Deflector Aluminium 1829mm Exitex - Outward Threshold & Deflector Aluminium 1829mm Aluminium Product Code: 19211
£86.52 (£103.82 inc. VAT) As low as:
£64.89 (£77.87 inc. VAT)
  • Buy 1 for £64.89 (£77.87 incl. tax) each and save 25%

Special Order 7-14 Days

Buy As Trade
Exitex Outward Threshold & Deflector Gold 914mm Exitex Outward Threshold & Deflector Gold 914mm Gold Coloured Product Code: 19202/GOLD

£25.88 (£31.06 inc. VAT) Special Price

Regular Price: £53.04 (£63.65 inc. VAT)

In Stock

Buy As Trade
Exitex - Outward Threshold & Deflector Gold 1829mm Exitex - Outward Threshold & Deflector Gold 1829mm Gold Coloured Product Code: 19210
£108.67 (£130.40 inc. VAT)

Special Order 7-14 Days

Buy As Trade
