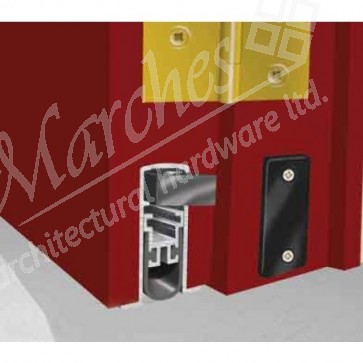

Exitex - Concealex 1001 (smoke/fire door) - Aluminium

Product Code: GR331
Quick Overview
For inward or outward opening doors. Automatic door bottom. Tested to 200,000 cycles.
Acoustic rating - 45db.
Tested to DIN 18095-2 smoke control doors. Tested to DIN 4102-5 fire control doors
Can be trimmed up to 100mm.
Description
Fitting Instructions: Ensure the space between the bottom of the door and its threshold is not more than 15mm (5/8"). Remove the door. Important: the length of Concealex can be reduced by up to 115mm (4.1/2") but only from the end opposite to the Black Adjustor. Using a fine tooth hacksaw cot Concealex unit to the width of the door - the flexible Gasket can be removed by pulling it from the opposite end to the Black Adjustor. Remove any burr which would interfere with the up and down movement of the seal carrier component. Cut the seal with a sharp knife or scissors - now re-insert the seal into its carrier component from the opposite end to the Black Adjustor. Note: there will be slight resistance as you insert the last few millimetres due to pushing it into the retaining clamp. Cut a 15.5mm wide x 32mm deep groove into the centre section of the door base. Position the Concealex unit into the groove ensuring the Black Adjustor knob is at the hinge side of the door. Secure with screw provided - re-hang the door. Position and secure the Striker Plate to the door frame ensuring the Black Adjustor contacts the centre of the Striker Plate. Screw out the Black Adjustor to provide even contact of the Seal with Threshold when door is closed - do not over adjust it - as you will damage the mechanism.

Product Variations:

Concealex 1001 Aluminium 800mm Concealex 1001 Aluminium 800mm Product Code: 19197

£26.62 (£31.94 inc. VAT) Special Price

Regular Price: £49.81 (£59.77 inc. VAT)

In Stock

Buy As Trade
Concealex 1001 Aluminium 900mm Concealex 1001 Aluminium 900mm Product Code: 19198

£31.18 (£37.42 inc. VAT) Special Price

Regular Price: £53.60 (£64.32 inc. VAT)

Special Order 7-14 Days

Buy As Trade
Concealex 1001 Aluminium 1000mm Concealex 1001 Aluminium 1000mm Product Code: 19199

£24.05 (£28.86 inc. VAT) Special Price

Regular Price: £26.59 (£31.91 inc. VAT)

Out of stock
