Era 35mm Backset Repair Lock
Product Code: 20716
(£77.40 inc. VAT)
£137.10 (£164.52 inc. VAT)
Availability: Item stocked in our warehouse
Sizes: B- 35, DL-1050, OL-2250, TR-716, TM- 619, BR- 71, BM- 619.
Other sizes: please see diagram.
All dimensions are in mm and are nominal.
Finish: Steel BZP CR3 Passivate.

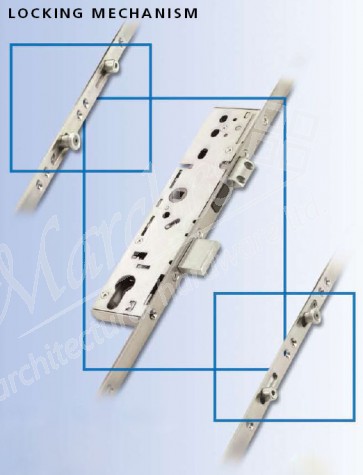

The repair lock is designed to replace most multi point locks in the UK market where a
replacement lock is not available. Designed for PVCu doors and frames.
Lock fits conventional 16mm wide Euro groove, with 35mm backset.
Non-handed lock mechanism with reversible sash bolt. Split spindle for lever pad applications.
Lock uses a traditional euro key cylinder, existing cylinder can be re-used if in good condition.
Lock will fit most routed preparations, but some trimming may be needed in some applications.
Lock uses conventional adjustable rollers for enhanced performance and weather sealing.
Lock uses high tensile steel mushrooms for anti-separation with adjustable keep plates.
Mushrooms can be shimmed to suit different air gap dimensions depending on applications
Lock can be cut-to-length to suit a wide range of door heights.
Keep strip conceals previous installation holes and does not use original hardware and fixings.
Keep strip packers are universal and are adjustable on site to suit the door frame profile (patented product).
Keep strip is none handed and suitable for swing in/out designs.
Keep is adjustable for seal compression/door distortion.
Lock and keep are corrosion protected to latest international specifications.
Package is supplied with all fixings and illustrated instructions for full installation.
