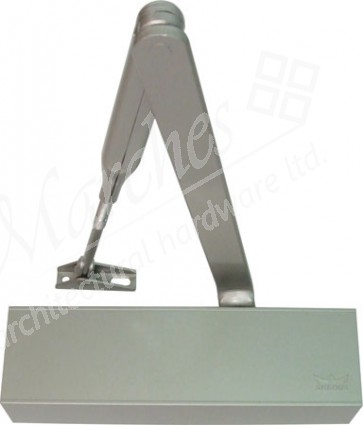

Dorma TS 72 VBC overhead rack and pinion guide rail door closer with standard arm

• Specification:
- Surface mounted rack and pinion door closer with flat form arm for doors up to 1100 mm with adjustable closing force, backcheck and latching action by arm
- All adjustments on the front of closer
• Features:
- Rack and pinion motion
- Normal arm
- Closing force adjustable from front (size range EN 2-4)
- Self regulating backcheck
- Latching action by arm
• Options
- Parallel arm bracket (please see Related Products)
- Hold open arm
- Mounting plate
• Certification
- Tested and approved to BS EN 1154: 1997 + A1:2003
- Tested to conform with CE requirements
- Certifire approved; certificate no. CF 268 120 mins timber
• Material:
- Aluminium body. Mild steel arm
- Stainless steel cover*
• A door stop should always be used for non back checked doors, and where practical for back checked doors, and at least 66% of the door width away from the hinge
• For application figures please see PDF Page
