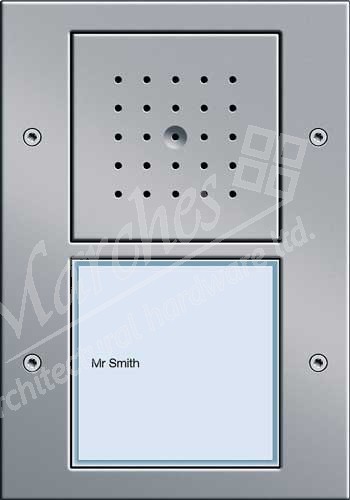

Door station surface-mounted with door speaker and 1-gang call button

• Complete pre-assembled unit for surface-mounted installation
• Power supply: 26V DC ±2V (bus voltage)
• Connections: 2 terminal screws for 2-wire bus, 2 terminal screws for additional supply
• Dimensions (width x height x depth): 110 x 181 x 19 mm
• Consists of:
Door station with speaker and 1-gang call button
Rigid aluminium profile housing
Shatter-proof and scratch-resistant thermoplastic cover frame, with high resistance to ultraviolet light
Torx screws - to deter theft of station
• Door station features:
1-gang call button with inscription label and with white LED call button illumination
Weather-proof speaker
High-quality electric microphone
Hands-free feature (voice-controlled talk-back with echo and background noise suppression.)
Audible acknowledgement signal with pressing of call buttons
Adjustable speech volume
Splash-water sealed cover plate
Inscription label can be exchanged without tools or frame removal
Name plate dims. (width x height): 62 x 62 mm
Temperature range: -25ºC to + 70ºC
• Impact-resistant plastic cover plates
