Door Closer Ts4000s Silver

• Specification:
- Surface mounted rack and pinion door closer with flat form arm for doors up to 1400 mm with adjustable closing force, optical strength indicator, backcheck and hydraulic latching action
- All adjustments on the front of closer
• Features:
- Rack and pinion
- Steel flat form arm
- Closing force adjustable from front (size range EN 1-7)
- Optical closing force indicator
- Adjustable backcheck
- Valve adjusting latching speed
- All adjustments on front of closer
• Options (shown in Related Products)
- Arch door drop plate
- Fig 1 architrave bracket
- Mounting plate
- Soffit bracket, frame mounting
- Fig 1 glass clamping plate
- Fig 1 glass mounting plate
• Certification
- Tested and approved to BS EN 1154: 1999
- Tested to conform with CE requirements
- Certifire approved; certificate no. CF252 120 mins timber
• Material:
- Aluminium body. Mild steel arm
- Electro plated mild steel cover*
• Also available in dark bronze RAL colours, subject to quantity
• A door stop should always be used for non backchecked doors, and where practical for backchecked doors, and at least 66% of the door width away from the hinge

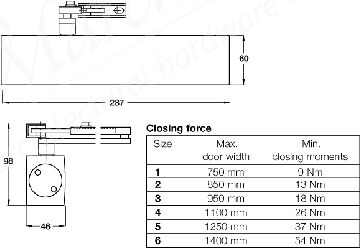

• For application figures please see PDF Page
