Centor E3 4L 1R Bi-Folding Kit - 4000mm Tracks, No Seals, SSS Finish (Opening Outwards)
£829.90 (£995.88 inc. VAT) Special Price
Regular Price: £1,276.77 (£1,532.12 inc. VAT)
Availability: Item stocked in our warehouse
Quick Overview
E3 bi-fold system kit for 4L 1R doors to suit openings up to 4m wide.
- No Seals or Aluminium bottom sill (Optional). See related products.
- Suitable for outward opening applications.
- Other options are available upon request. Please call on 01597 823822 or email info@marchesironmongery.co.uk
Parts Included:
x1 4000mm Top track (20605), x1 4000mm Floor channel retainer (20643) & x1 4000mm Poly floor channel (20635).
x2 Concealed pivot set (20661), x2 Wall pivot set (20662), x1 Intermediate Carrier Set (20652), x1 Right Hand Carrier Set (20650), x2 Half offset hinge set (20657), x2 200mm Locking dropbolt (20670), x2 Non-Locking dropbolt (20674) & x2 dropbolt cup (20690).
NB: One extra hinge required for doors over 2250mm high. Two extra hinges for doors over 3000mm high.
Max panel weight - 115kg. Max panel width - 1200mm. Max panel height - 3600mm. Min panel thickness - 35mm.
- No Seals or Aluminium bottom sill (Optional). See related products.
- Suitable for outward opening applications.
- Other options are available upon request. Please call on 01597 823822 or email info@marchesironmongery.co.uk
Parts Included:
x1 4000mm Top track (20605), x1 4000mm Floor channel retainer (20643) & x1 4000mm Poly floor channel (20635).
x2 Concealed pivot set (20661), x2 Wall pivot set (20662), x1 Intermediate Carrier Set (20652), x1 Right Hand Carrier Set (20650), x2 Half offset hinge set (20657), x2 200mm Locking dropbolt (20670), x2 Non-Locking dropbolt (20674) & x2 dropbolt cup (20690).
NB: One extra hinge required for doors over 2250mm high. Two extra hinges for doors over 3000mm high.
Max panel weight - 115kg. Max panel width - 1200mm. Max panel height - 3600mm. Min panel thickness - 35mm.
Description

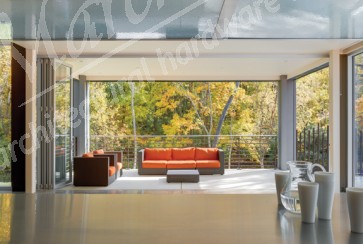

Centor E3 Top hung bi-fold system is suitable for a range of residential and commercial applications. Providing complete freedom in door design, E3 accommodates panels up to 1200mm wide by 3600mm high and 115kg, allowing for the extra weight of double and triple glazing. Centor’s solution to the challenge of creating seamless transitions between indoor and outdoor spaces.
Features:
• Use with timber or aluminium doors.
• Exterior or interior use.
• Designed to operate flawlessly - built-in adjustment mechanics; patented Surelock 5; fully adjustable.
• Proven durability - Extensively tested; Cycle tested to the equivalent of opening and closing panels every day for 40 years, and passed the PAS24-2016 requirements.
• Backed by a 10-year warranty
