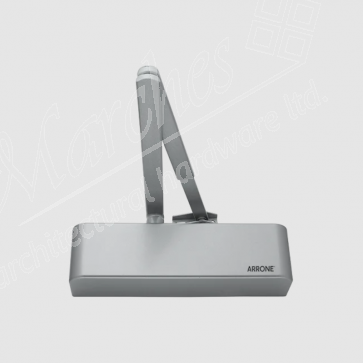

AR1500 Silver Enamel Door Closer 120min

ARRONE overhead door closing device.

• Power size: EN 2 to EN 4, adjustable by spring tension
• Function: Closing, latching, backcheck
• Cover: Radiused
• Arm application: Fig 1, Fig 6 and Fig 61 fixing positions
• Successfully type tested for conformity to all requirements of BS EN 1154:1997.
• Tested: Door width 1100mm, door weight 80kg
• Classification (Fig 1/Fig 61): 4 | 8 | 4/2 | 1* | 1 | 4
• Classification (Fig 6): 4 | 8 | 4/2 | 1* | 1 | 4
• Fire tested to BS EN 1634-1: Suitable for 30, 60 and 120 minute timber fire doors and 240 minute steel fire doors
• Certification: CE AD0124,, DOP HUK0001, Certifire CF294

<p>The AR1500 can satisfy the opening force recommendations of BS 8300 and ADM when fitted in Fig 1 to a door with minimum width of 938 mm according to third party data. However other installed hardware, door seals and differential air pressure will affect the products as fitted performance meaning that the door closer alone cannot allow compliance to BS 8300 and ADM.</p>
