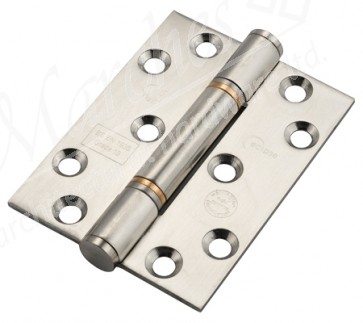

4" Thrust Bearing Hinge (Pair) - Grade 316 SSS

Product Code: 16589
£17.05 (£20.46 inc. VAT)
  • Buy 5 for £12.79 (£15.35 incl. tax) each and save 25%
  • Buy 10 for £11.94 (£14.32 incl. tax) each and save 30%
  • Buy 25 for £11.08 (£13.30 incl. tax) each and save 35%
  • Buy 50 for £10.23 (£12.28 incl. tax) each and save 40%
Buy As Trade

Availability: Item stocked in our warehouse

Quick Overview
Dimensions:
H x W x T - 102mm x 76mm x 3mm

Finish - Grade 316 Satin Stainless Steel

Features:
• Suitable for all external joinery including coastal environments and use with acidic timbers such as Accoya and Oak.
• Maintenance Free / Self lubricating
• FD60 on Timber
• Grade 13 for doors up to 120kg / Tested to 200,000 cycles
• 160kg with 1.5 Pairs

Frisco - 14929 G316
Description
High quality grade 316 Stainless Steel thrust bearing hinge recommended for use with external applications including those in coastal area as well as use with acidic timbers. Hinge incorporates thrust bearings as well as phosphor bronze washers rather than ball bearings making it self-lubricating and maintenance free. Unlike many other hinges on the market this product will not “Tea Stain” due to the high quality of the materials used. Hinge complies with BS EN 1935:2002 Grade 13 and is suitable for doors up to 160kg (with 3 hinges) as well as being tested to 200,000 cycles. Hinge also tested to BS EN 1634-1:2000 and is fire tested to FD60 on timber Timber and FD240 on Steel application. Also complies with Certifire CF336 and is CE marked. Sold in pairs with screws.

Attachments

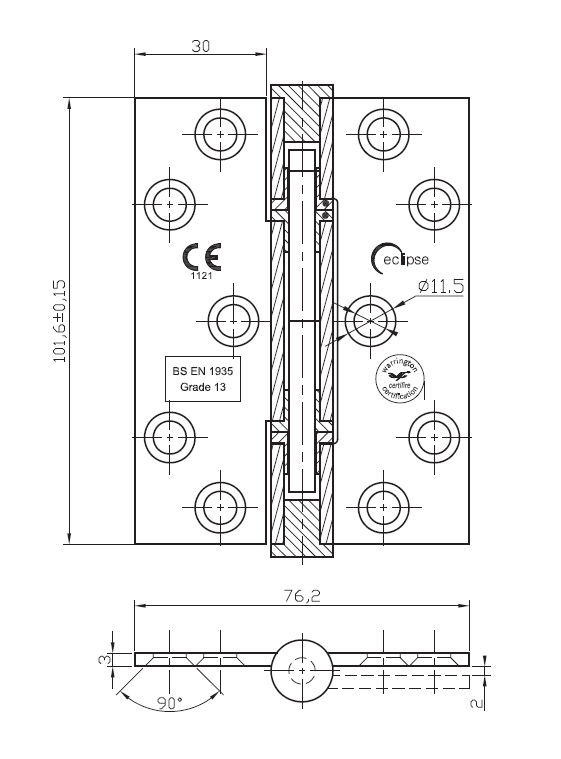

16589 Technical Drawing Size: (53.29 KB)
