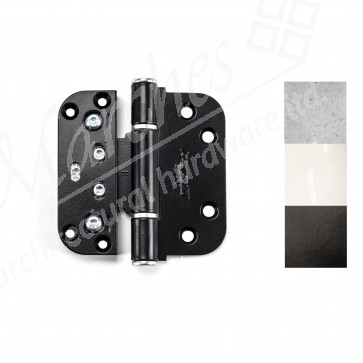

3D Adjustable Door Hinge (Each) - Various Finishes
Quick Overview
Dimensions - 92 x 92 x 14mm/2.7mm (See Diagram)
• Complies with BS EN1935:2002
• Easy Adjustment in 3 Directions
• 80kg load carrying capability (Based on 3 Hinges)
• Hinge remains fixed to the door during adjustment process
• Low Friction Bearings
Finish - Black / White / Supercoat 500 (Supercoat 500 is an improved sealant process, which improves the corrosion resistance of electroplated deposits - Tested to BS EN 1670 Class 4).
Can be powder coated to other colours on request.
The hinge features an innovative, patented design that allows independent adjustment in all 3 axes +/- 2.5mm Height, +/- 2mm Side, +/- 2mm Depth (Compression) by 4mm key (See related products).
• Complies with BS EN1935:2002
• Easy Adjustment in 3 Directions
• 80kg load carrying capability (Based on 3 Hinges)
• Hinge remains fixed to the door during adjustment process
• Low Friction Bearings
Finish - Black / White / Supercoat 500 (Supercoat 500 is an improved sealant process, which improves the corrosion resistance of electroplated deposits - Tested to BS EN 1670 Class 4).
Can be powder coated to other colours on request.
The hinge features an innovative, patented design that allows independent adjustment in all 3 axes +/- 2.5mm Height, +/- 2mm Side, +/- 2mm Depth (Compression) by 4mm key (See related products).
Description
Heavy duty, maintenance-free door hinges developed for long-life performance under the most arduous conditions.
The 3D Adjustable Door Hinge is the ideal solution for high performance applications. It is fully adjustable in 3 directions and the patented design allows the hinge to remain fixed to the door during adjustment.
Featuring low-friction bearings for smooth door opening, it offers guaranteed reliable, maintenancefree operation.
