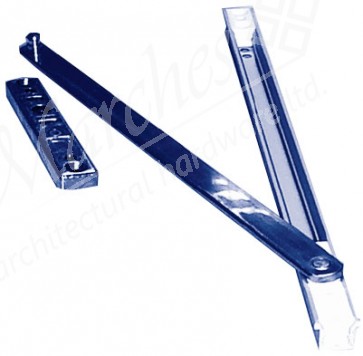

Euro Door Restrictor Stay for PVC Doors - 280mm
£8.17
(£9.80 inc. VAT)
Availability: Item stocked in our warehouse
Quick Overview
Sold in singles without screws.
Size: 280mm.
Size: 280mm.
Description
Fixing Instructions:
1) Slide the stay arm into the friction stay guide channel. Slide the two end stops into the guide channel.
2) Insert the friction stay guide channel into the groove in the top of the door, positioning as in diagram. For an opening angle of 90º, 85º or 80º position the end stop D as shown in Detail 1 (see Tech Logo), then screw in place.
3) Position the stay support onto the frame according to the diagram and mark the position of the securing pin holes. Drill 4.5mm diameter holes in these two positions. Reposition and screw in place. Insert the two securing pins and tap in place so the pin becomes flush with the stay support.
4) Clip the stay arm into the stay support hole, and using an Allen key turn the clip to lock the stay in place. The degree of friction can be altered, by turning the friction adjust screw clockwise or anti-clockwise as required.
1) Slide the stay arm into the friction stay guide channel. Slide the two end stops into the guide channel.
2) Insert the friction stay guide channel into the groove in the top of the door, positioning as in diagram. For an opening angle of 90º, 85º or 80º position the end stop D as shown in Detail 1 (see Tech Logo), then screw in place.
3) Position the stay support onto the frame according to the diagram and mark the position of the securing pin holes. Drill 4.5mm diameter holes in these two positions. Reposition and screw in place. Insert the two securing pins and tap in place so the pin becomes flush with the stay support.
4) Clip the stay arm into the stay support hole, and using an Allen key turn the clip to lock the stay in place. The degree of friction can be altered, by turning the friction adjust screw clockwise or anti-clockwise as required.
