Stock Code: 31308
1 In Stock for dispatch
Dimensions
EN2 (up to 850mm / 45kg) - YesEN3 (up to 950mm / 60kg) - Yes
EN4 (up to 1100mm / 80kg) - Yes
EN5 (up to 1250mm / 110kg) - Yes
Mechanism Rack and Pinion
Adjustable closing speed - Yes
Adjustable latch action - Yes
Adjustable delayed action - Yes
Adjustable back check - Yes
Max door width (mm) - 1250
Max door weight (kg) - 110
Opening angle - 180 degrees
DDA (Min door width 835mm - Fig 1
DDA (Min door width 728mm) - Fig 66
LH and RH doors – universal Application: Yes
Fire Rated (BS EN 1634-1: 2000) - Yes
Tested to BS EN1154: 1997 - Yes
ANSI tested to 1 million cycles - Yes
Guarantee - 35 Years
Hold-open arm
(Not to be used on fire doors) - Optional
Slide arm - Optional
Drop plate - Optional
TS9205 door closers have been independently tested to conform with the EN 1154 performance standard. They are CE marked and classified
Description

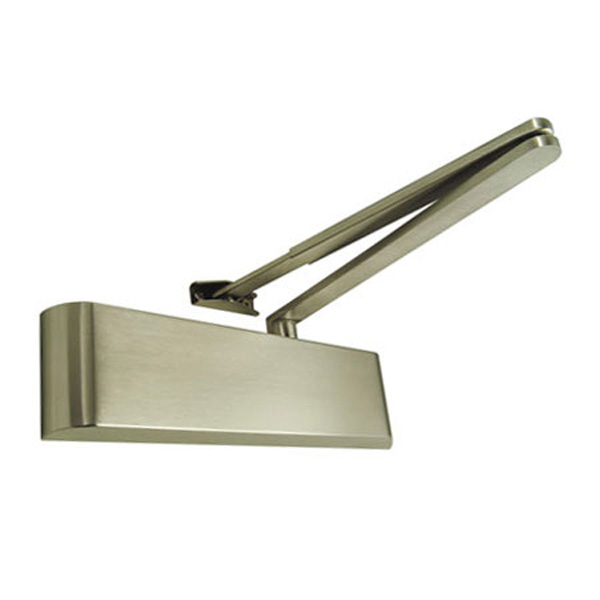

The Rutland TS.9205 Door closers with its renown high efficiency, quality, reliability and ease of opening is known as one of the UK’s top specified door closer from Rutland. Now with its easy to read instructions and adjustable power EN2-5 mechanism, it is commanding a market share and saving approximately 12.5minutes on fitting time. Assisting door sets to meet the requirements of Approved Document M and BS 8300 recommendation are just some of its many advantages and have therefore been specified throughout the world in some of the most prestigious locations. Temperature Stable hydraulic Oil is one of its unique properties which show the exacting standards that Rutland manufactures their products so they can be used in temperatures from -15ºC to + 40ºC. 120min Fire tested| Finish | PVD Brass |
|---|
