Concealed press fit shelf supports - masonary walls fixing
Quick Overview
Supplied with
1 Supporting pin with threaded screw
2 Pre-mounted eccentric sleeves
1 Washer,
1 S8H 80R Fischer wall plug
1 Supporting pin with threaded screw
2 Pre-mounted eccentric sleeves
1 Washer,
1 S8H 80R Fischer wall plug
Description
• For concealed mounting of shelves
• For installation into masonary walls
• Press-fit mounted
• 12 mm size for 19 mm shelf thickness
• 14 mm size for 22 mm shelf thickness

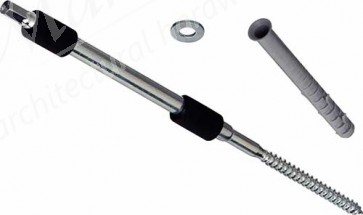

• Fitting comprises:
- 1 galvanised steel supporting pin with threaded screw
- 2 pre-mounted plastic sleeves
- 1 galvanised steel washer
- 1 grey nylon Fischer wall plug, S 8H 80 R
• Level the shelf by laying on the shelf supports and adjusting the eccentric screws before finally fixing the shelf in position
• Adjustable in height and inclination:
- 12 mm size: ± 1 mm
- 14 mm size: ± 2 mm
• For installation into masonary walls
• Press-fit mounted
• 12 mm size for 19 mm shelf thickness
• 14 mm size for 22 mm shelf thickness
• Fitting comprises:
- 1 galvanised steel supporting pin with threaded screw
- 2 pre-mounted plastic sleeves
- 1 galvanised steel washer
- 1 grey nylon Fischer wall plug, S 8H 80 R
• Level the shelf by laying on the shelf supports and adjusting the eccentric screws before finally fixing the shelf in position
• Adjustable in height and inclination:
- 12 mm size: ± 1 mm
- 14 mm size: ± 2 mm
